JC TYPE 8B
CA$110.00
This type of mechanical seal can replace John Crane type 8B.
PLEASE CONTACT US TO MAKE SURE LEAD TIME.

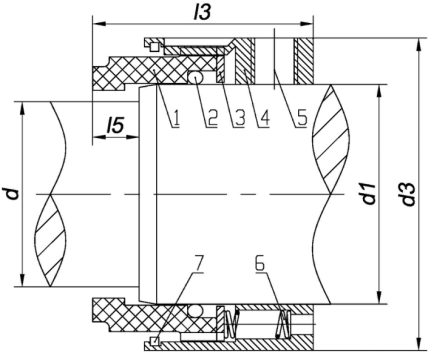

| d(inch) | d1(inch) | d3 | l3 | l5 |
|---|---|---|---|---|
| 1.000 | 1.250 | 40.10 | 33.32 | 6.4 |
| 1.125 | 1.375 | 43.36 | 34.93 | 7.9 |
| 1.250 | 1.500 | 48.13 | 34.93 | 7.9 |
| 1.375 | 1.625 | 51.30 | 36.50 | 8.7 |
| 1.500 | 1.750 | 54.48 | 36.50 | 8.7 |
| 1.625 | 1.875 | 60.83 | 44.45 | 8.7 |
| 1.750 | 2.000 | 64.00 | 44.45 | 9.5 |
| 1.875 | 2.125 | 65.58 | 44.45 | 9.5 |
| 2.000 | 2.250 | 70.36 | 44.45 | 9.5 |
| 2.125 | 2.375 | 76.70 | 52.37 | 11.1 |
| 2.250 | 2.500 | 79.88 | 52.37 | 11.1 |
| 2.375 | 2.625 | 83.06 | 52.37 | 11.1 |
| 2.500 | 2.750 | 86.23 | 52.37 | 11.1 |
| 2.625 | 2.875 | 89.40 | 52.37 | 11.1 |
| 2.750 | 3.000 | 92.58 | 52.37 | 11.1 |
| 2.875 | 3.125 | 95.76 | 52.37 | 11.1 |
| 3.000 | 3.250 | 97.33 | 52.37 | 11.1 |
| 3.125 | 3.375 | 100.50 | 52.37 | 11.1 |
| 3.250 | 3.500 | 105.28 | 52.37 | 14.3 |
| 3.375 | 3.625 | 108.46 | 52.37 | 14.3 |
| 3.500 | 3.750 | 111.63 | 52.37 | 14.3 |
| 3.625 | 3.875 | 114.80 | 52.37 | 14.3 |
| 3.750 | 4.000 | 117.98 | 52.37 | 14.3 |
| 3.875 | 4.125 | 121.16 | 52.37 | 14.3 |
| 4.000 | 4.250 | 124.33 | 52.37 | 14.3 |
